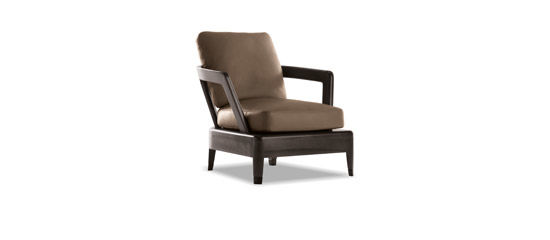

Virginia "Indoor" Armchair
Duchamp "Bronze"
RITTER
CARSON
查看全部
Virginia "Indoor" Armchair
RITTER
CARSON
查看全部
Calder "Bronze" Side Tables
Jacob
查看全部
Calder "Bronze" Side Tables
AERON
Jacob
Reeves "Wood"
查看全部
Calder "Bronze" Side Tables
查看全部
Duchamp "Bronze"
查看全部
Reeves "Small"
Calder "Bronze" Side Tables
AERON
Jacob
查看全部
Calder "Bronze" Side Tables
查看全部
Calder "Bronze" Side Tables
查看全部
Calder "Bronze" Side Tables
AERON
查看全部
AERON
Jacob
Calder "Bronze" console
Reeves "Large"
查看全部
Calder "Bronze" Side Tables

Freeman

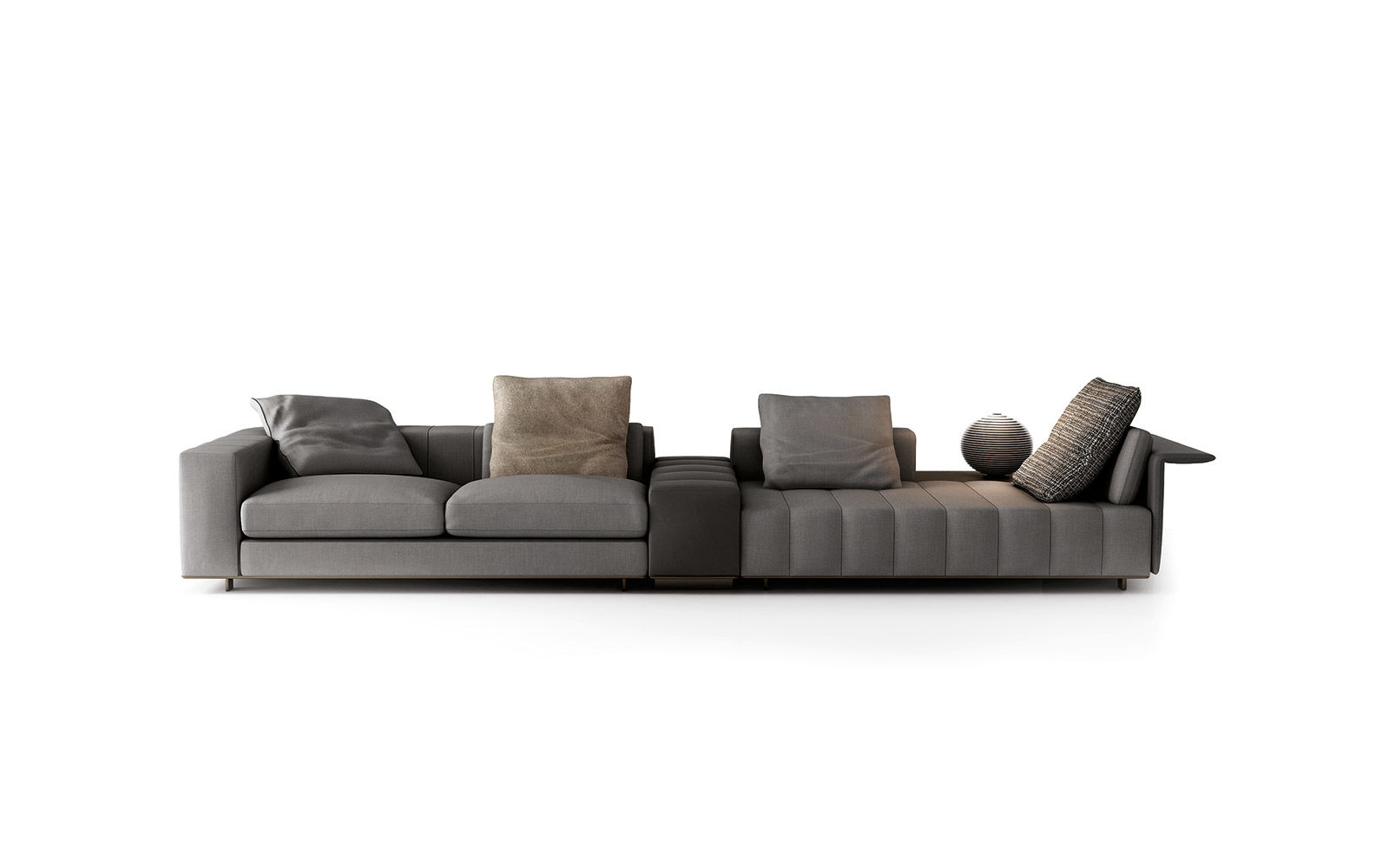

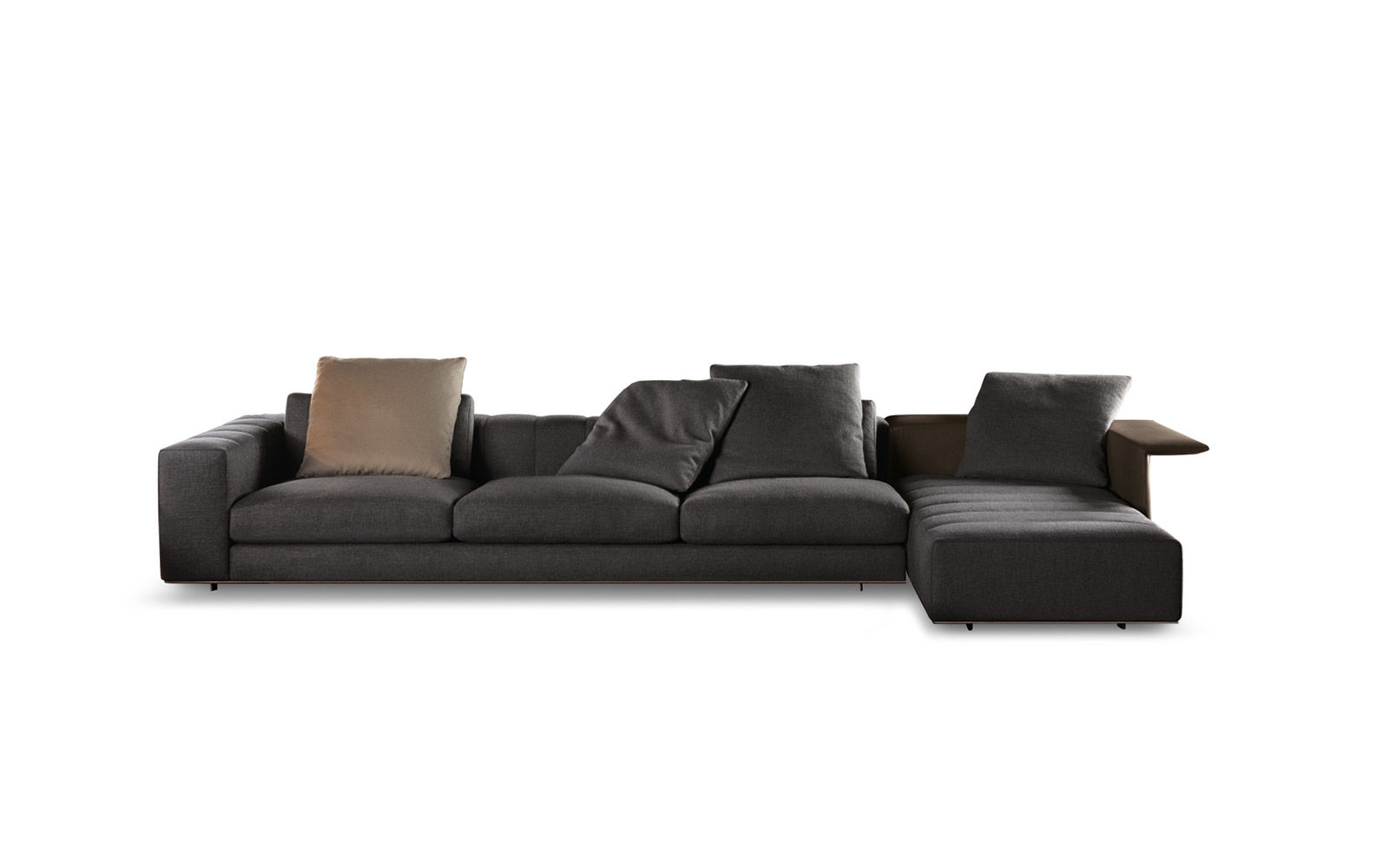

通过沙发系列来对居住空间的设计加以创新,运用独具特色的多种元素,搭配别具一格的审美情趣,融入优雅的比例设计和无与伦比的舒适感。Freeman系列集双重特质于一身:Freeman “Duvet”组合拥有柔软而包容的线条和超软靠垫,打造温暖舒适的非凡体验。Freeman “Duvet”的设计抚慰人心,精致的细节做工重新对传统加以诠释,平添一份具有现代感的古典风情。Freeman “Tailor”组合拥有与众不同的个性,造型更加洗练,单组沙发的缝制设计别具一格,展现出图形魅力与现代意味。两种特质融合在一起,打造出“多面玲珑”的组合形式,在一天中的不同时刻,用不同方式来享受沙发上的体验。Freeman沙发系列无疑是居住空间的主角,既可以在这里独享私密空间,也可以在这一闲适的环境中与朋友共度美好时光。沙发基座采用挤压铝型材制成,圆边框架和浅铜色的亮光漆使其倍显优雅。边角的连接部件为压铸铝,一丝不苟的细节为沙发基座平添一份精致。沙发的支撑脚采用考究的金属材质并搭配浅铜色的亮光漆,打造出整体的轻量感。

这一组沙发座椅系列拥有双重个性:一是让人尽享放松的柔软温馨,二是颇具动感和当代精神的风范。

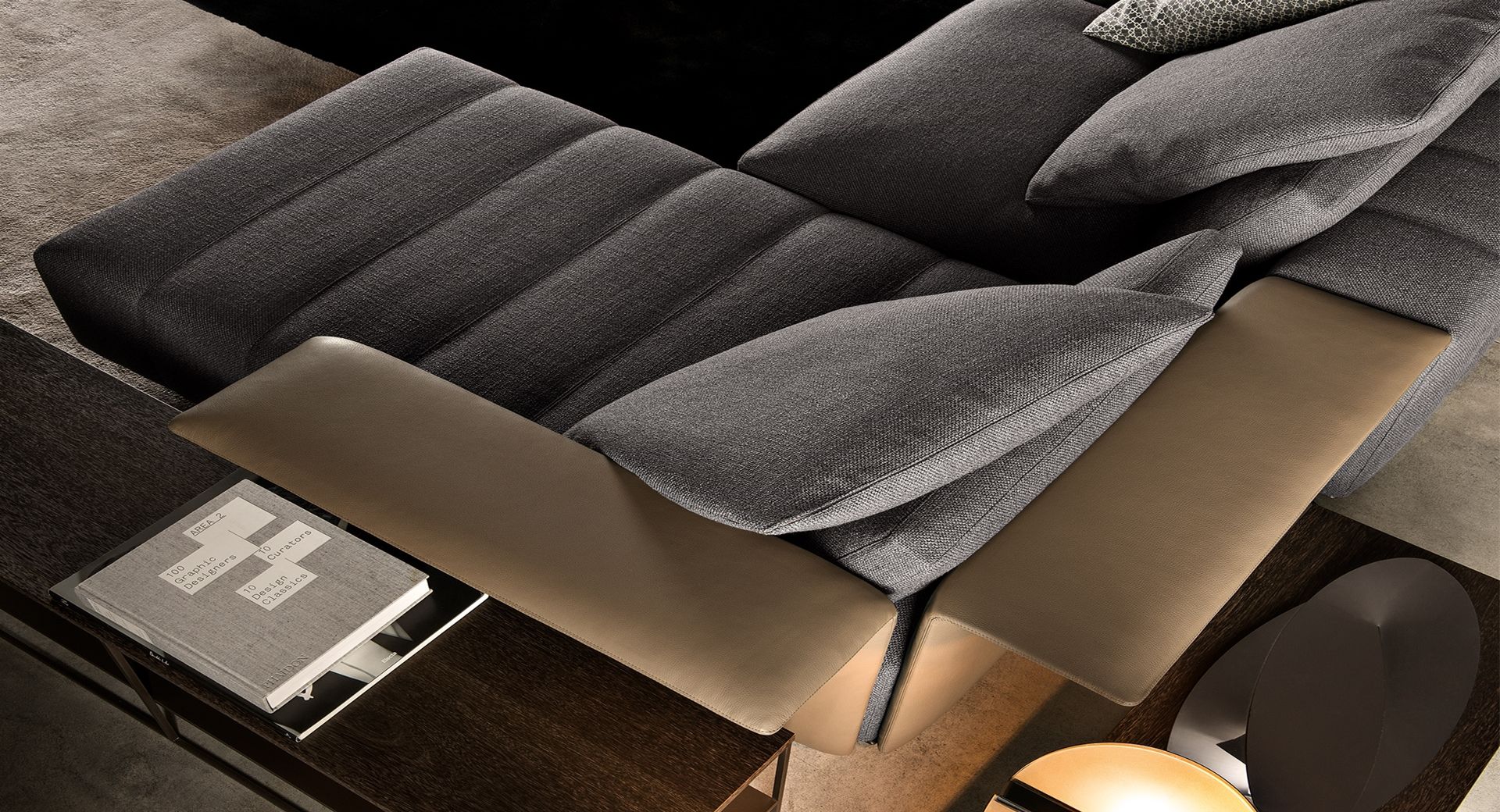

热点聚焦

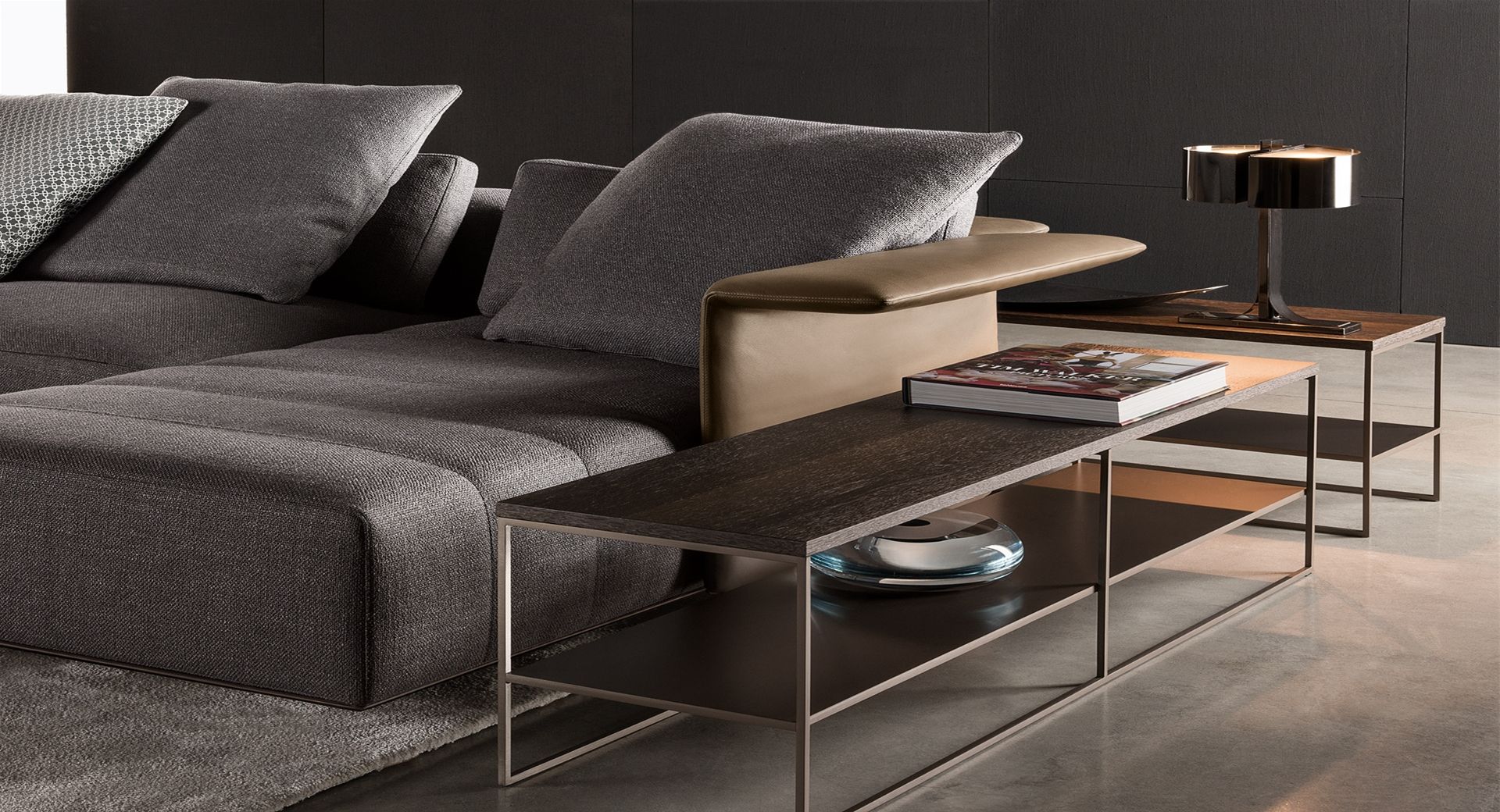

Freeman“Duvet”与 Freeman“Tailor”元素能与 Calder 系列茶几巧妙搭配。该茶几系列有青铜色金属支架,以及 Sand 色调光泽漆面、Visone 色调相思木、意大利云灰石或卡拉卡塔大理石台板可选。 此外,茶几的型号亦有多种选择,除了作为置物平面的实用性外,还能从视觉上为空间赋予轻盈动感。

项目

休斯顿,私人住宅

Technical Features

DUVET - SOFA CM 182
DUVET - SOFA CM 224
DUVET - SOFA CM 308
DUVET - SOFA CM 245
DUVET - COMPOSED SOFA CM 392
DUVET - COMPOSED SOFA CM 308
DUVET - ELEMENT WITH 1 ARMREST CM 112
DUVET - ELEMENT WITH 1 ARMREST CM 196
DUVET - ELEMENT WITH 1 ARMREST CM 154
DUVET - ELEMENT WITH 1 ARMREST CM 280
DUVET - ELEMENT WITH 1 ARMREST CM 217
DUVET - CENTRAL ELEMENT CM 168
DUVET - CENTRAL ELEMENT CM 126
DUVET - CENTRAL ELEMENT CM 189
DUVET - CORNER ELEMENT CM 112
DUVET - CHAISE-LONGUE CM 112X175
DUVET - CHAISE-LONGUE CM 154X154
DUVET - CHAISE-LONGUE CM 175X175
DUVET - OPEN-END CORNER SOFA CM 112X238
DUVET - OPEN-END CORNER SOFA CM 112X259
DUVET - OPEN-END ELEMENT WITH 1 ARMREST CM 238X112- BACKREST CM 175
DUVET - OPEN-END ELEMENT WITH 1 ARMREST CM 259X112 - BACKREST CM 196
DUVET - DAYBED ELEMENT CM 175
DUVET - DAYBED ELEMENT CM 196

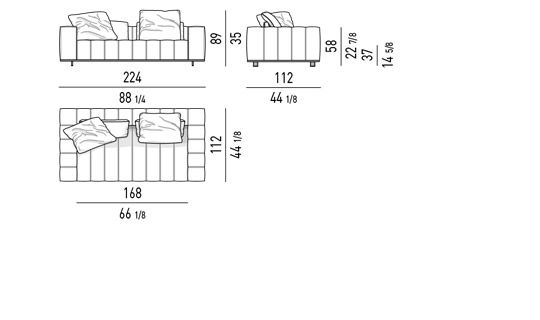

TAILOR - SOFA CM 224

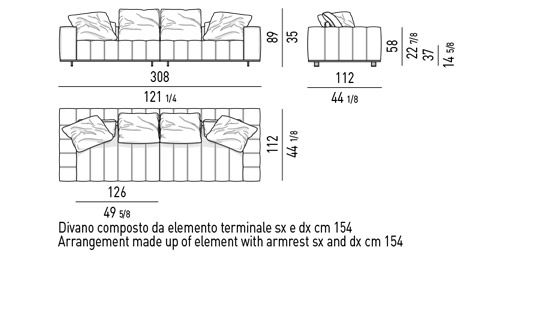

TAILOR - COMPOSED SOFA CM 308

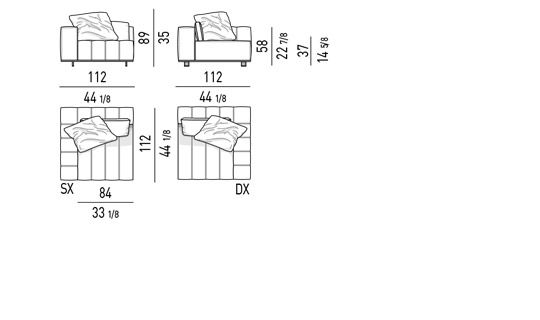

TAILOR - ELEMENT WITH 1 ARMREST CM 112

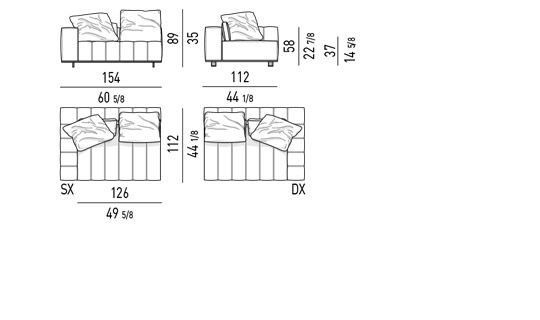

TAILOR - ELEMENT WITH ONE ARMREST CM 154

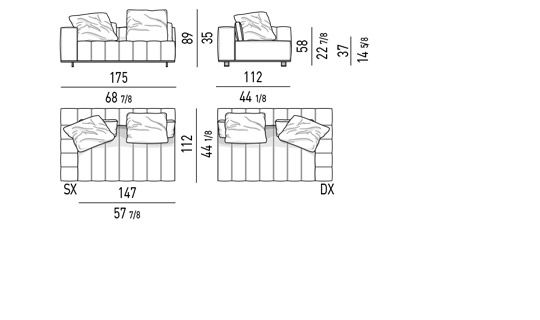

TAILOR - ELEMENT WITH ONE ARMREST CM 175
TAILOR - ELEMENT WITH ONE ARMREST CM 196

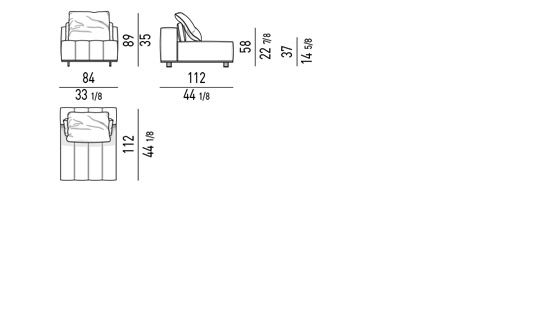

TAILOR - CENTRAL ELEMENT CM 84

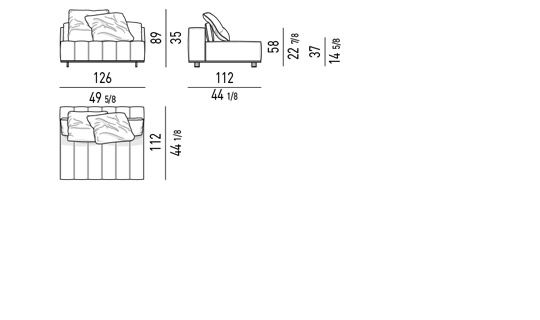

TAILOR - CENTRAL ELEMENT CM 126

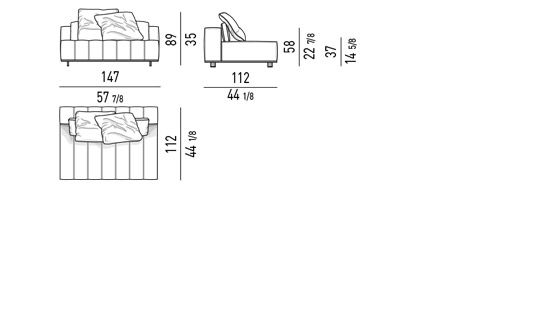

TAILOR - CENTRAL ELEMENT CM 147

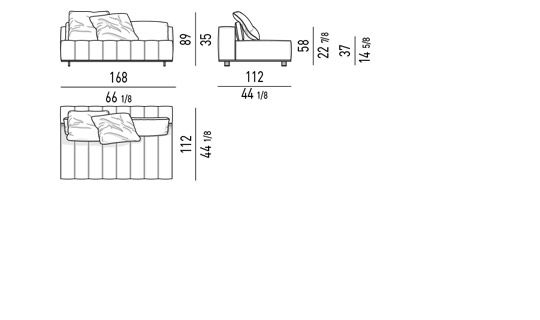

TAILOR - CENTRAL ELEMENT CM 168

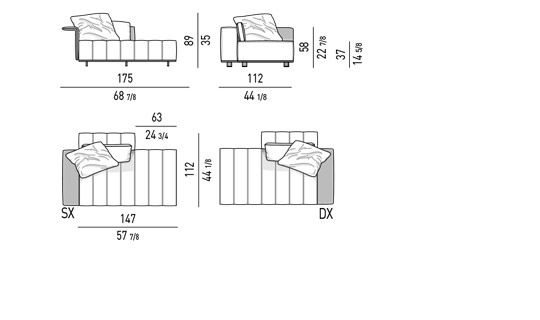

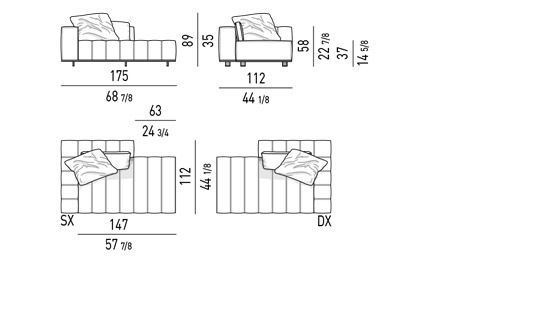

TAILOR - OPEN-END ELEMENT WITH ONE ARMREST CM 175 - BACKREST CM 112

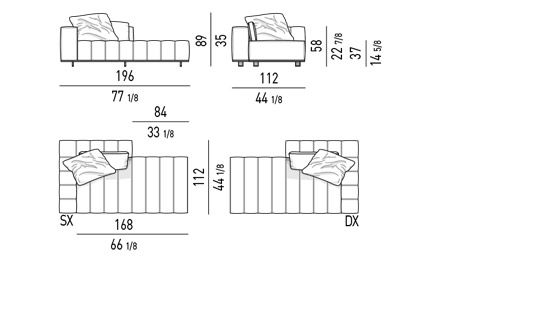

TAILOR - OPEN-END ELEMENT WITH ONE ARMREST CM 196 - BACKREST CM 112

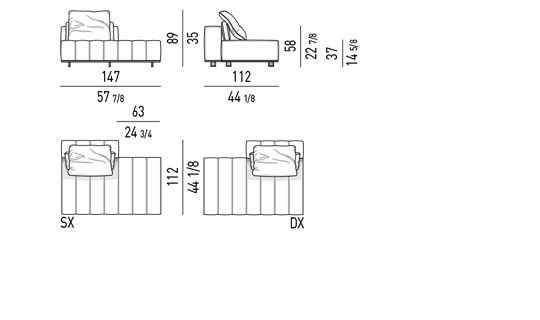

TAILOR - OPEN-END ELEMENT CM 147 - BACKREST CM 84

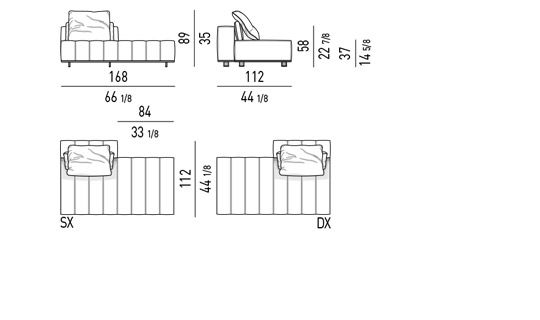

TAILOR - OPEN-END ELEMENT CM 168 - BACKREST CM 84

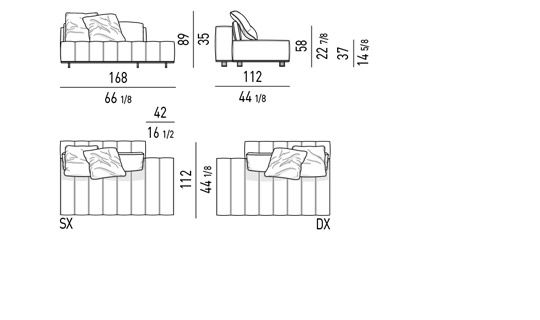

TAILOR - OPEN-END ELEMENT CM 168 - BACKREST CM 126

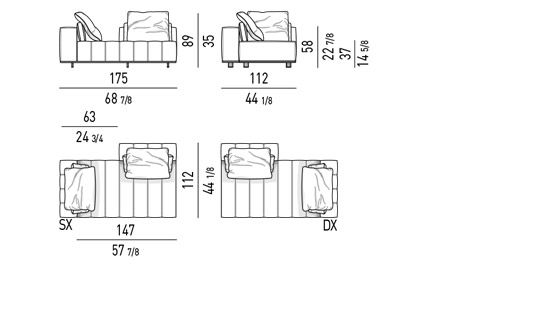

TAILOR - DAYBED ELEMENT CM 175 - BACKREST CM 84

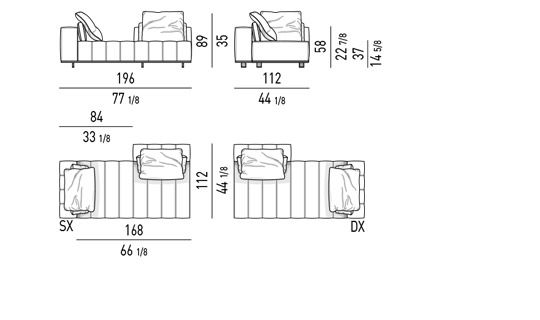

TAILOR - DAYBED ELEMENT CM 196 - BACKREST CM 84

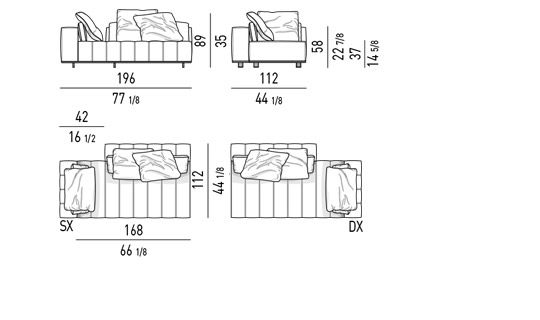

TAILOR - DAYBED ELEMENT CM 196 - BACKREST CM 126

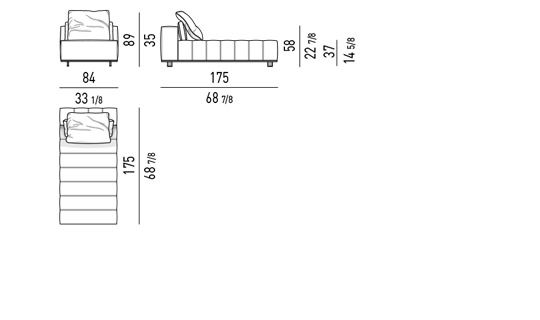

TAILOR - COUCH CM 84X175

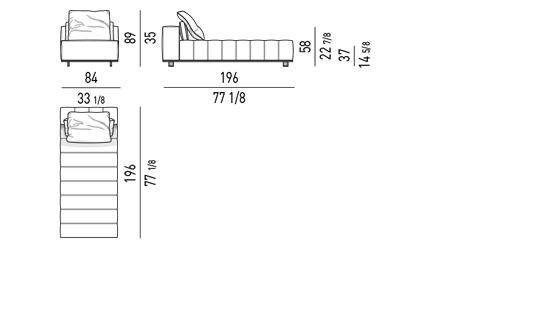

TAILOR - COUCH CM 84X196

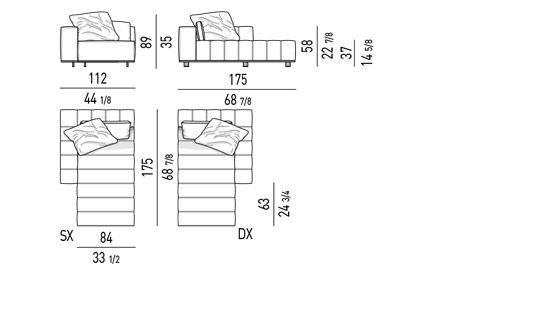

TAILOR - CHAISE-LONGUE CM 112X175

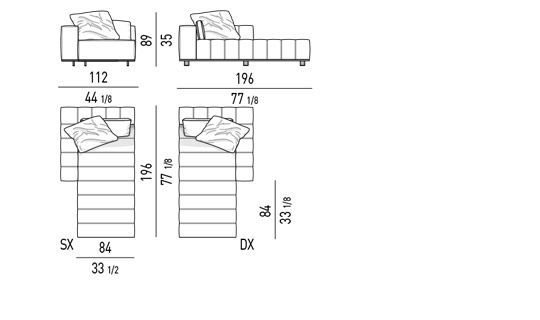

TAILOR - CHAISE-LONGUE CM 112X196

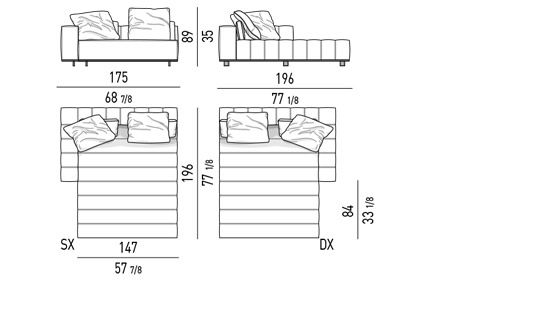

TAILOR - CHAISE-LONGUE CM 175X196

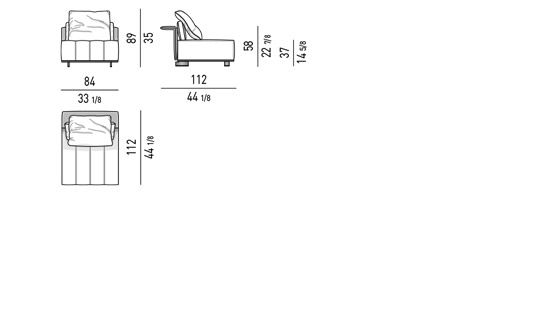

TAILOR "WING" - SOFà CM 84

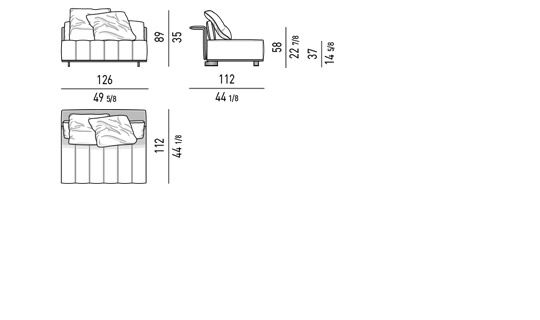

TAILOR "WING" - SOFà CM 126

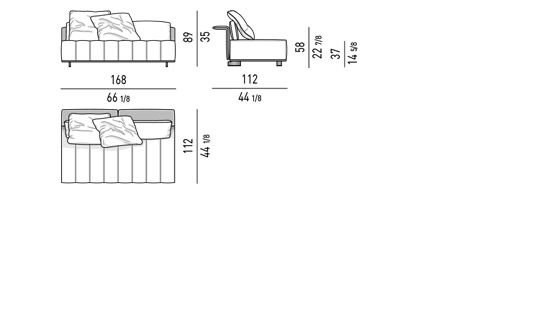

TAILOR "WING" - SOFà CM 168 - N 2 BACKRESTS CM 84

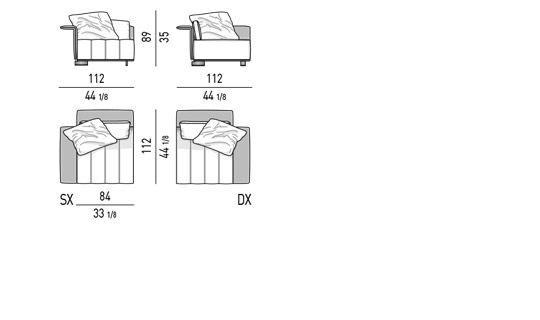

TAILOR "WING" - ELEMENT WITH 1 ARMREST CM 112 - "WING" BACKREST CM 84

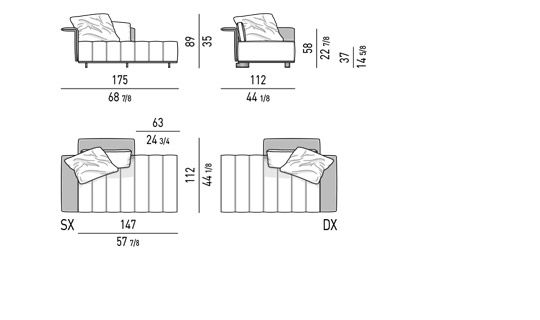

TAILOR "WING" - OPEN-END ELEMENT WITH ONE ARMREST CM 175 - BACKREST CM 84

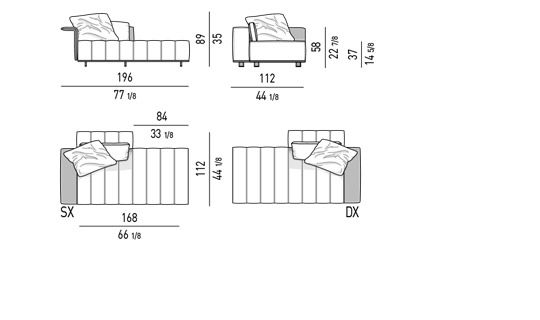

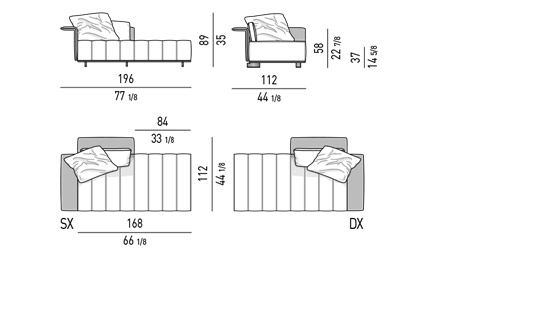

TAILOR "WING" - OPEN-END ELEMENT WITH ONE ARMREST CM 196 - BACKREST CM 84
TAILOR "WING" - OPEN-END ELEMENT WITH 1 ARMREST CM 196 - BACKREST CM 126

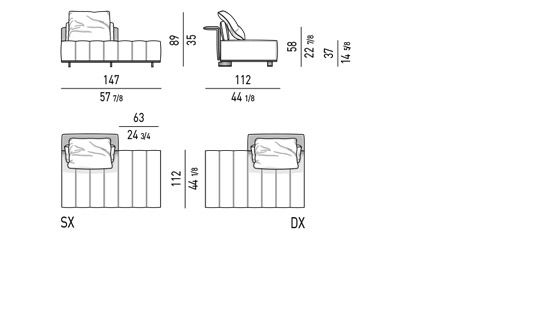

TAILOR "WING" - OPEN-END ELEMENT CM 147 - BACKREST CM 84

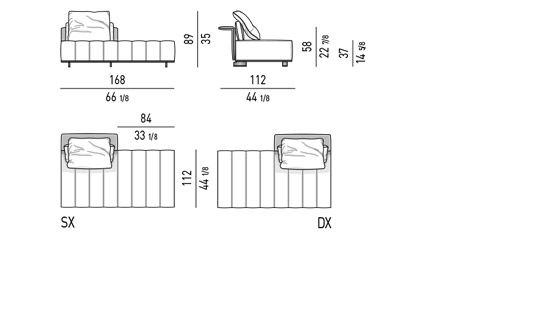

TAILOR "WING" - OPEN-END ELEMENT CM 168 - BACKREST CM 84

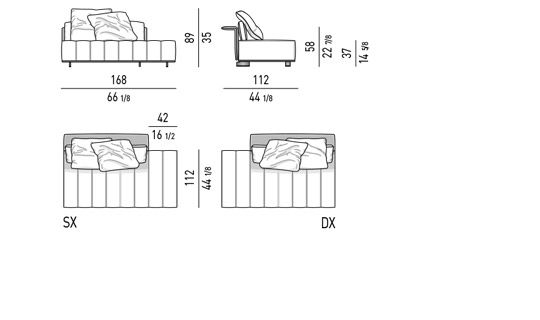

TAILOR "WING" - OPEN-END ELEMENT CM 168 - BACKREST CM 126

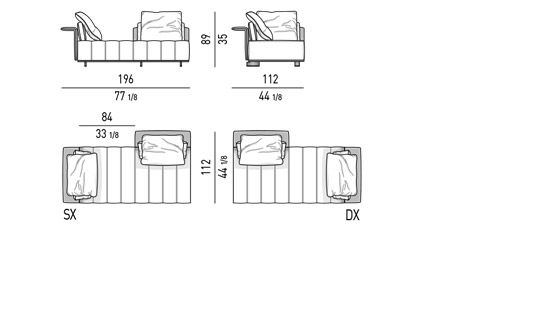

TAILOR "WING" - DAYBED ELEMENT CM 196 - BACKREST CM 84

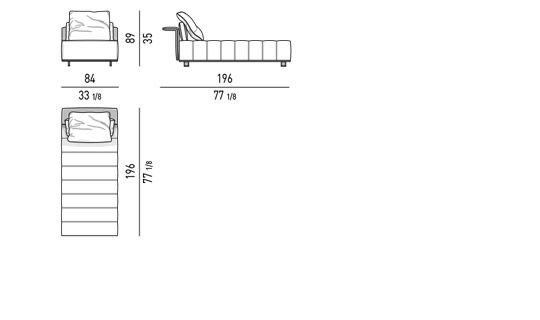

TAILOR "WING" - COUCH CM 84X196

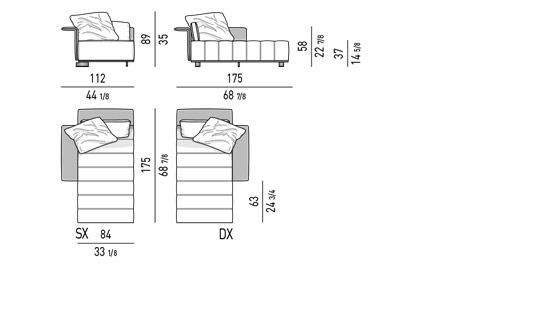

TAILOR "WING" - CHAISE-LOUNGE CM 112X175

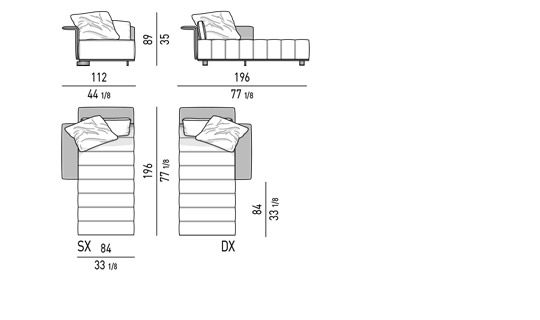

TAILOR "WING" - CHAISE-LOUNGE CM 112X196

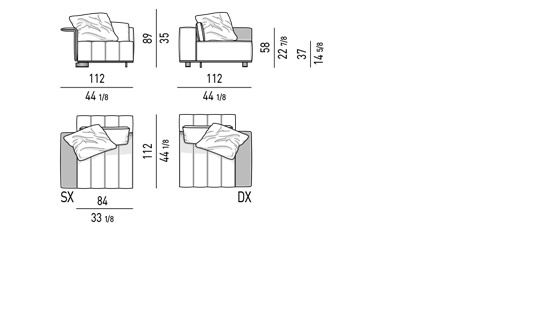

TAILOR "MIX" - ELEMENT WITH 1 ARMREST CM 112

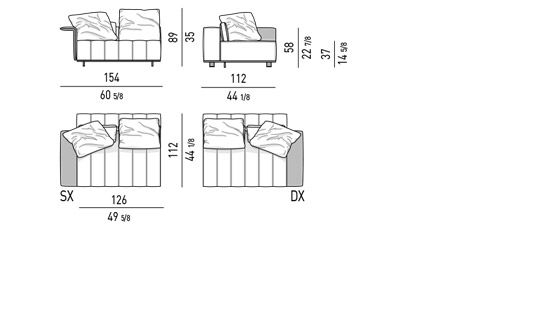

TAILOR "MIX"- ELEMENT WITH 1 ARMREST CM 154

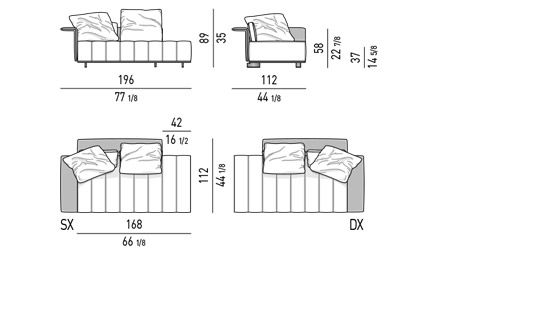

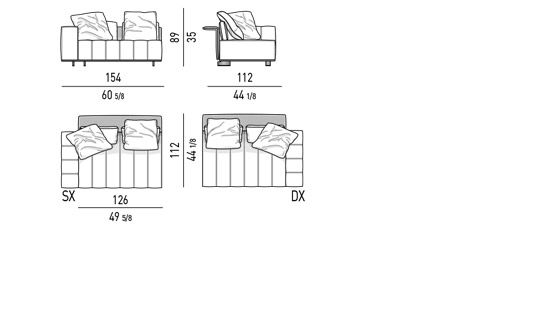

TAILOR "MIX" ELEMENT WITH 1 ARMREST CM 154 - "WING" BACKREST CM 126

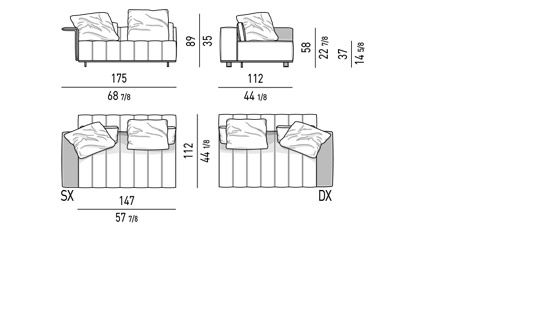

TAILOR "MIX" - ELEMENT WITH ONE ARMREST CM 175

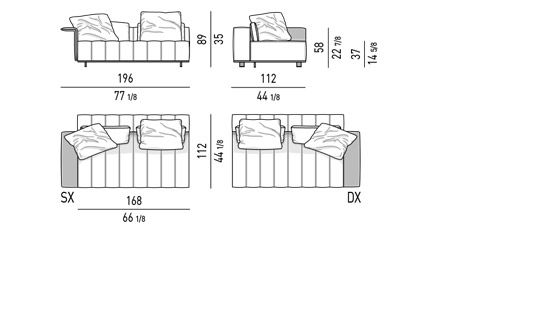

TAILOR "MIX" - ELEMENT WITH ONE ARMREST CM 196

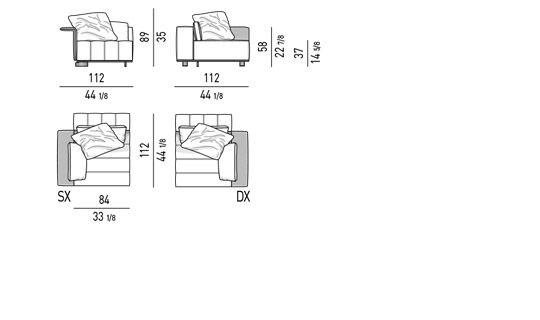

TAILOR "MIX" - CORNER ELEMENT CM 112
TAILOR "MIX" - OPEN-END ELEMENT WITH ONE ARMREST CM 175 - BACKREST CM 84
TAILOR "MIX" - OPEN-END ELEMENT WITH ONE ARMREST CM 196 - BACKREST CM 84
TAILOR "MIX" - OPEN-END ELEMENT WITH ARMREST CM 196 - BACKREST CM 126

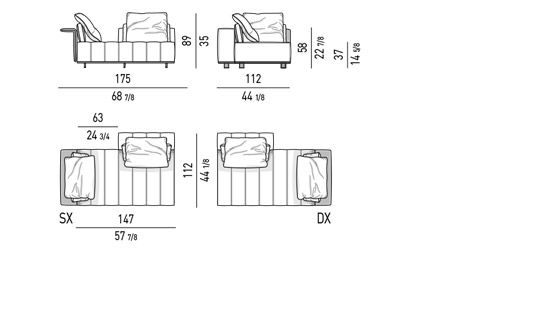

TAILOR "MIX"- DAYBED ELEMENT CM 175 - BACKREST CM 84

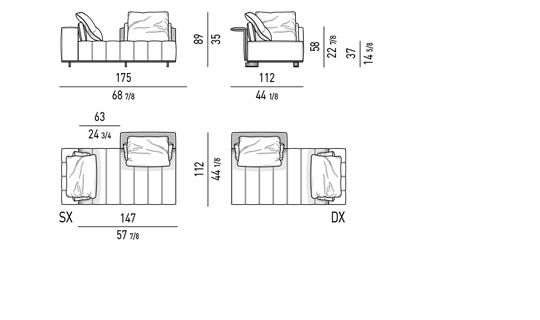

TAILOR "MIX"- DAYBED ELEMENT CM 175 - "WING" BACKREST CM 84

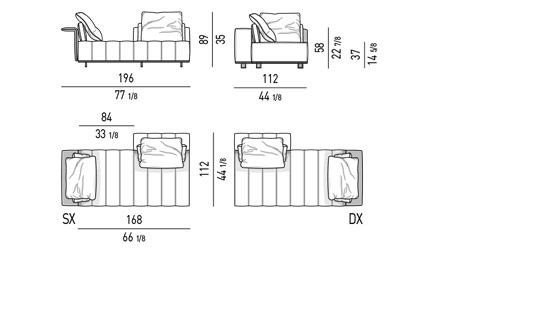

TAILOR "MIX" - DAYBED ELEMENT CM 196 - BACKREST CM 84

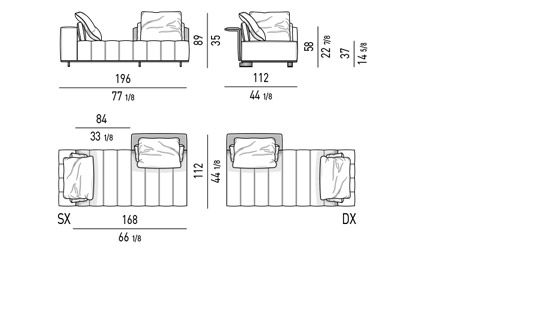

TAILOR "MIX" - DAYBED ELEMENT CM 196 - "WING" BACKREST CM 84

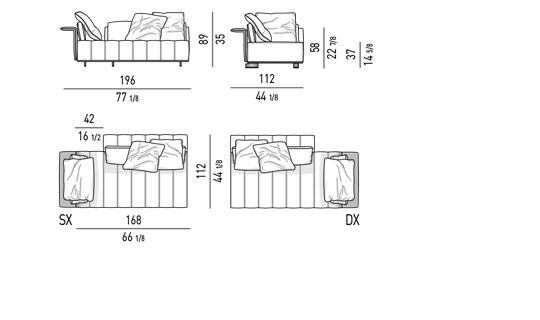

TAILOR "MIX"- DAYBED ELEMENT CM 196 - BACKREST CM 126

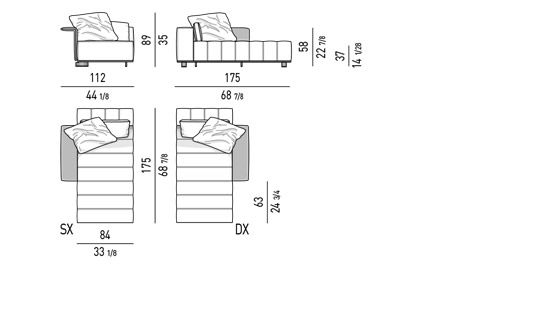

TAILOR "MIX" - CHAISE-LONGUE CM 112X175

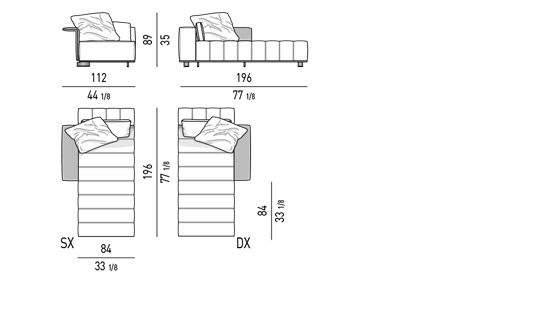

TAILOR "MIX" - CHAISE-LONGUE CM 112X196

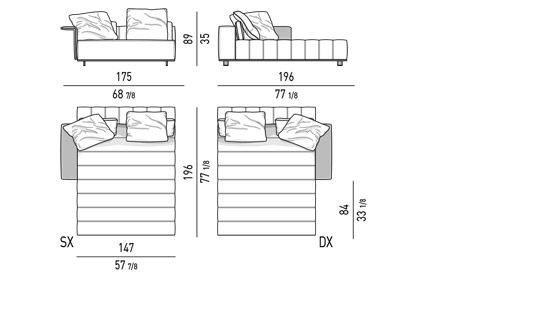

TAILOR "MIX" - CHAISE-LONGUE CM 175X196
OTTOMAN CM 63X84
OTTOMAN CM 84X84
BENCH CM 126X84
BENCH CM 147X84
BENCH CM 168X84
BENCH CM 63X112
BENCH CM 84X112
ARMREST-OTTOMAN CM 38X84
ARMREST-OTTOMAN CM 38X112
BENCH "STAND-ALONE" CM 84
BENCH "STAND-ALONE" CM 168
OPTIONAL BACK CUSHION CM 65X65
OPTIONAL LUMBAR CUSHION CM 58X33
OPTIONAL LUMBAR CUSHION CM 77X33
OPTIONAL CUSHION CM 45X45
OPTIONAL HEADREST CM 58X75
OPTIONAL HEADREST CM 77X75
GRAY - COFFEE TABLE
Structure Freeman "Duvet"
In plywood with suspension provided by high-rubber-content elastic webbing. The seat structure is made of high resilience, variable-density polyurethane foam, with a concave contour to cradle the seat cushion in order to maintain its stability and durability. The armrests and backrests have a breathable heat-bonded quilted fiber casing laminated to a white hypoallergenic cotton fabric which lends softness and comfort. A special assembly was used for the structure covering (backrests and armrests). The various parts in fabric were joined by using a bronze-colored strip of eco-leather with doublestitched detail. In the leather version, the strip is in the same leather as the one used for the upholstery.
Freeman "Tailor" structure
In plywood with suspension provided by high-rubber-content elastic webbing. The seat structure is made of several layers of variable-density, high resilience polyurethane foam. The upper layer is made of single highelastic- content contoured straps which, combined with the lower layer, guarantee enhanced softness over time. “Wing” and “Mix” have an armrest and/or backrest made of a metal frame coated in fireproof polyurethane foam. The entire structure has a breathable heat-bonded quilted fiber casing laminated to a white hypoallergenic cotton fabric which lends softness. A special assembly was used for the structure covering (backrest and armrests). The various parts in fabric were joined by using a bronze-colored strip of eco-leather with double-stitched detail.
Freeman "Duvet" cushions
Channeled goose down padding for the backrest cushions (Assopiuma certified, Gold Label) with Memory Foam core insert (temperature-sensitive material). Seat cushions are completely reversible, with channeled goose down padding (Assopiuma certified, Gold Label) and core insert made of high resilience, variable-density polyurethane foam wrapped in a layer of Memory Foam.
Freeman "Tailor" cushions
Channeled goose down padding for the backrest cushions (Assopiuma certified, gold label) with Memory Foam core insert (temperaturesensitive material).
Freeman "Duvet" covers
Seat and backrest cushion covers are completely removable in all versions (fabric and leather). The fabric structure covers come off by removing the metal base after loosening the ribbed handles with the key that is provided. Structural leather upholstery is not removable.
Freeman "Tailor" covers
Backrest cushion covers are completely removable in all the versions (fabric and leather). The “Wing” element cover is removable only for the fabric version. The fabric or leather removable covers of the structure come off by removing the metal base after loosening the ribbed handles with the key that is provided.
N.B. Freeman "Tailor"
To facilitate transport and removal of covers, the armrests and backrest can be removed from the base by means of a quick coupling and uncoupling system.

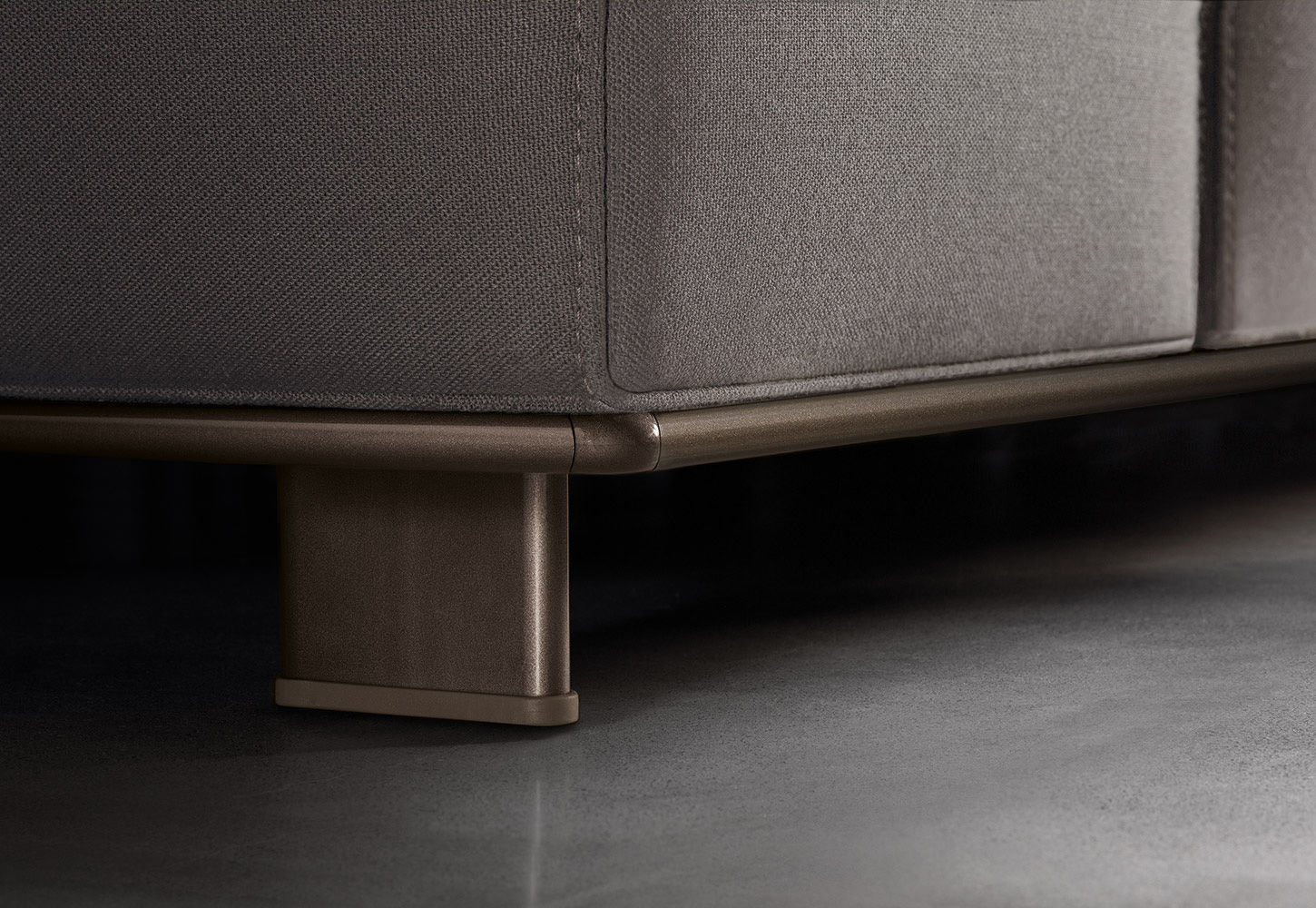

Base

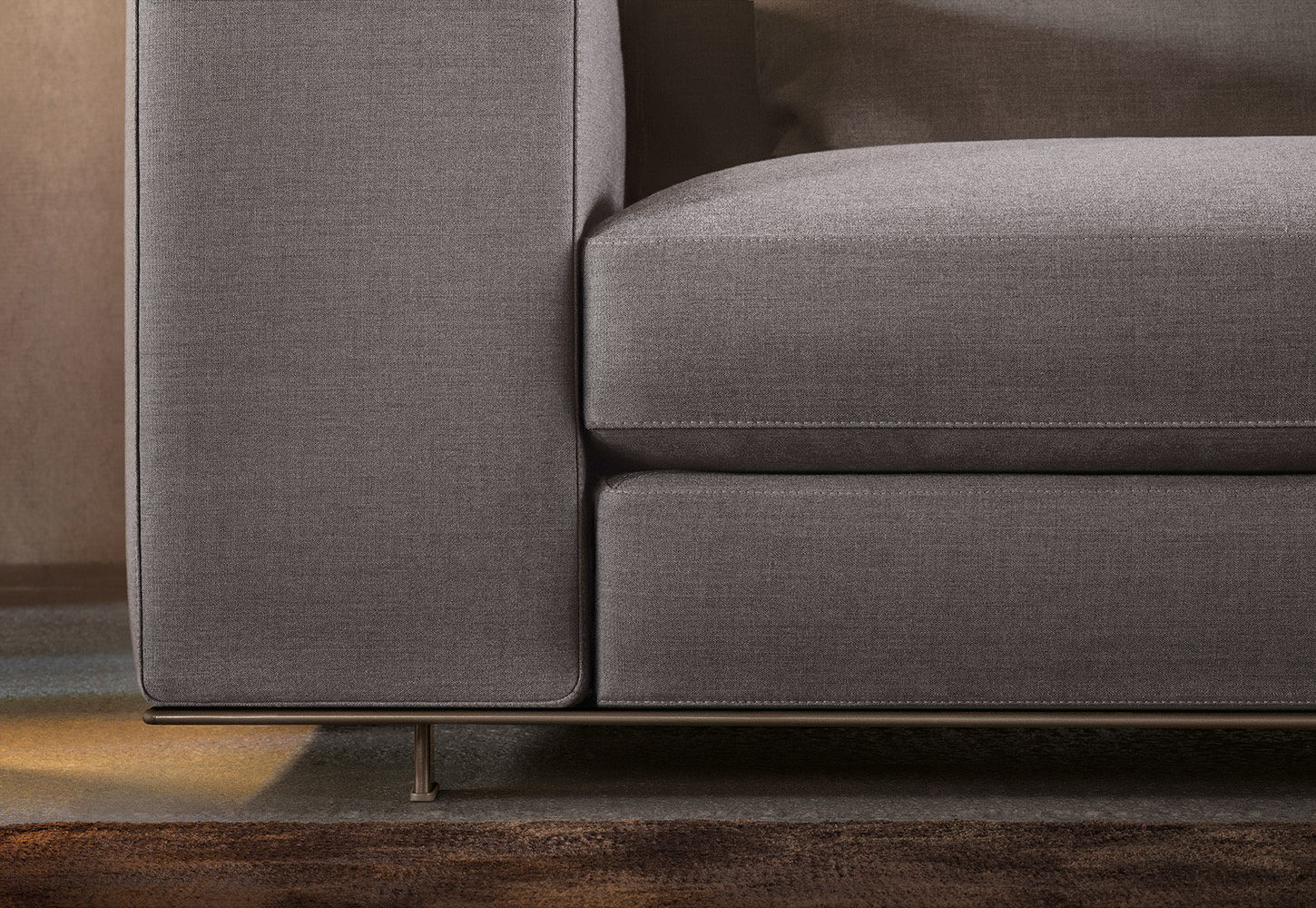

Extruded aluminum frame with cast aluminum joint fittings (both an exclusive design by Minotti Studio), with a glossy anti-fingerprint Bronze painted finish. The metal feet also have a glossy light Bronze painted finish. Protective bronze-painted SEBS glide (soft scratchproof rubber).

2D 模型

CAD文件中标注的尺寸可能与产品信息表中的尺寸稍有不同。注意:本网站上的CAD文件受到版权保护,归Minotti SpA公司独家所有。公司仅限在室内设计中使用该文件。严禁将其用于其他用途。

FREEMAN "TAILOR".DWG
FREEMAN "TAILOR" WING.DWG
FREEMAN "TAILOR" MIX.DWG
FREEMAN "DUVET".DWG
FREEMAN BENCH.DWG

3D 模型

CAD文件中标注的尺寸可能与产品信息表中的尺寸稍有不同。注意:本网站上的CAD文件受到版权保护,归Minotti SpA公司独家所有。公司仅限在室内设计中使用该文件。严禁将其用于其他用途。
